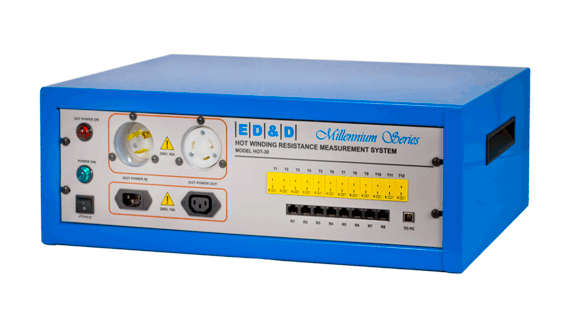

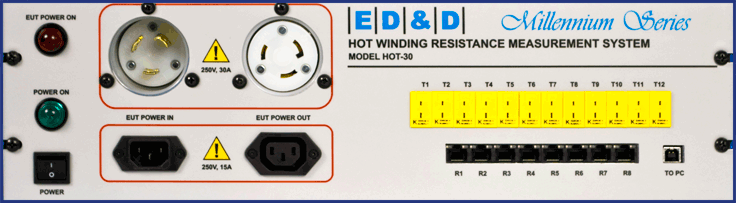

The brand new, ED&D EXCLUSIVE Hot Winding Resistance measurement system automates and simplifies measurement of the operating temperatures for multiple transformer windings.

  • Up to 8 resistance reading channels, 4-wire method
  • Up to 12 temperature reading chanels, use of Type K, 24 AWG, Teflon thermocouples

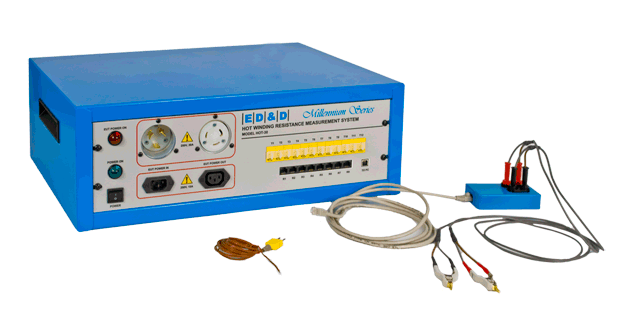

  • In the Box:
    1. 8 – data cable (Cat5e) to connect the isolation modules to the Resistance Reading Channels
    2. 8 – Isolation Module connected between the HOT-30 and EUT (Equipment Under Test) to isolate high voltage
    3. 8 – Banana Jack Sets (2 red2 black), to replace Kelvin Leads in tight places
    4. 8 – Kelvin Probe Set
    5. 12 – 72 inch K Type Thermocouple
    6. 1 – USB2.0 Type A (standard) to Type B USB cable
