Description

  • Completely adjustable tube height system allows moving the tube up/down to quickly establish the maximum 200 mm spacing from the spray nozzles as specified in the standards.
  • Completely adjustable tube mounting system = allows for different size spray tubes to be easily installed.

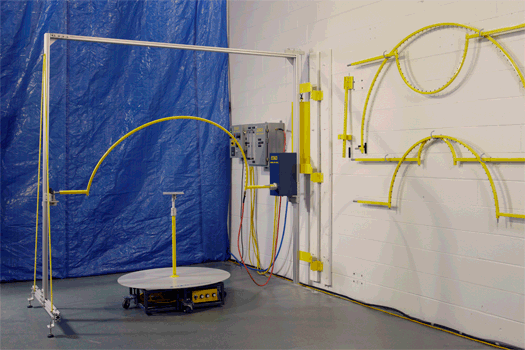

  • Folds to the wall when not in use (very beneficial)-the entire top beam and tube drive system has an integral heavy pin system that allows it to be folded to the wall in seconds after use = no far end tube support mouned to the floor!

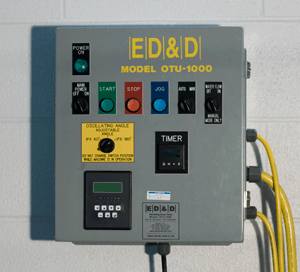

  • Automated System = automatically stops tube rotation and water flow at the precise test time! Also includes manual mode for flexibility.

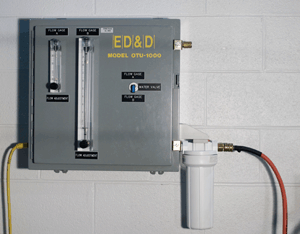

  • Dual Flow Gauges = allow for accurate reading of flow rate for the full range of tube sizes (small tubes use 0-1 L/min gauge; larger tubes use 0-5 L/min gauge).
