Breaking Capacity Testing

    Product List
  • Hipot Testing
  • Ground Continuity Testing
  • Leakage Current Testing
  • Accessibility Probes
  • Impact Testing
  • Temperature Measurement
  • Voltage, Current, & Power Management
  • Force & Torque Management
  • Power Control
  • Loading Devices
  • Flame & Other Plastics Testing
  • IP Code Testing
  • Plug, Socket, & Cord Testing
  • Breaking Capacity Testing
  • Abnormal Testing
  • Environmental Testing
  • Creepage & Clearance Testing
  • Toy Testing
  • Other Safety Products
  • Safety Labels
  • Uncategorized
Home / Breaking Capacity Testing
  • Series F50 Switch Testing Machines

    Read more
  • Series F56 Plug & Socket Testers

    Read more
  • Series PSO Power Supply with Ohmic & Inductive Load

    Read more

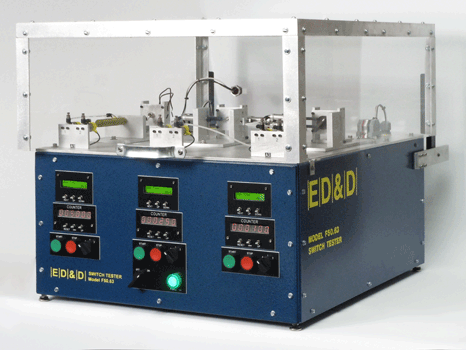

Series F50 Switch Testing Machines

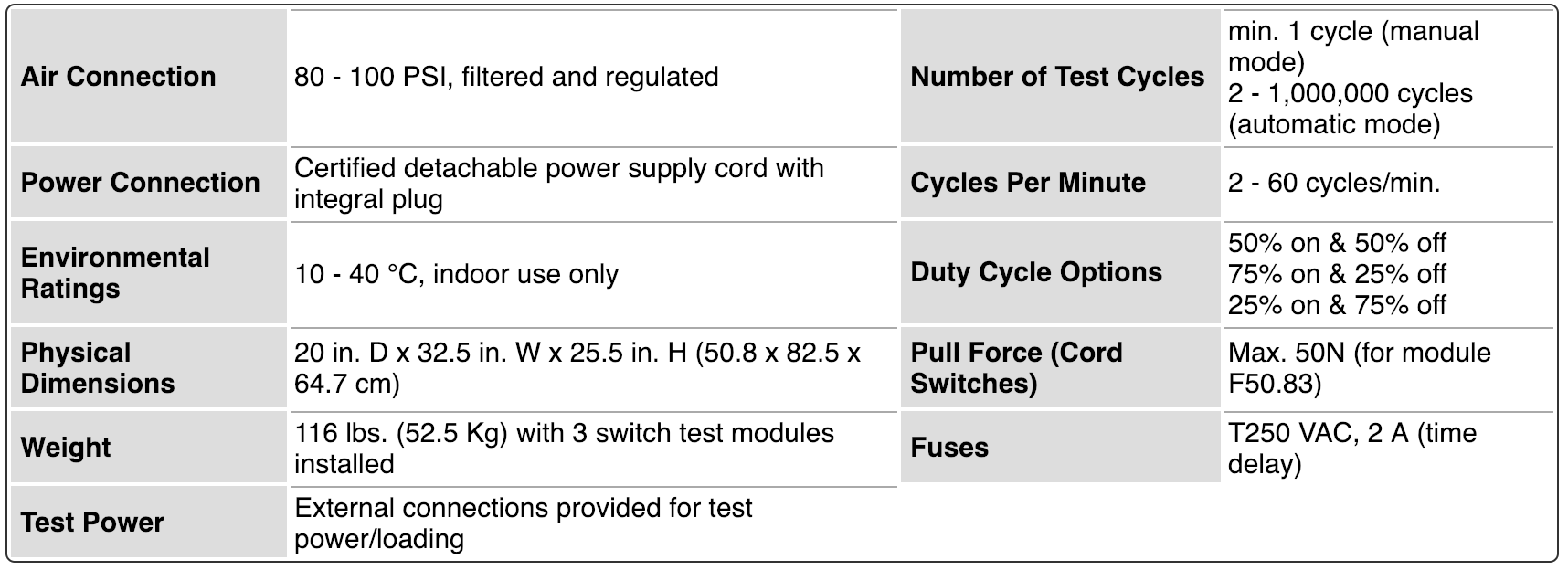

Product Details
  • 1 or 3 actuating device(s) for rocker switches and push- button switches with 2 single-acting pneumatic cylinders each, with air throttle valves to adjust the actuating speed, height-adjustable mounted to holders, with multiple adjustable specimen holders, with safety sockets to connect the specimens to external test voltages and loads
  • 1 housing, made of steel, with protective hood
  • 1 plug-in unit with front panel for operating the devices.
  • 1 Control device for the entire unit: main switch with EMERGENCY OFF function, safety switch for the protective hood, mains cord and fuses
  • 1 control device for each actuating device: programmable control unit with exchangeable program modules (containing the "test rhythm") and for adjusting and indicating the test parameters "number of strokes" and "stroke time", start and stop push-buttons, push-buttons for moving manually the cylinder pistons and as actuation indicator for the cylinder

Series F56 Plug & Socket Testers

Product Details
To test plugs and socket outlets, cable couplers, and appliance couplers having rated currents up to 16 A, for household and similar purposes - at room temperature - concerning their breaking capacity and their capability to withstand the stresses occurring in normal use. Acording to IEC 60884-1.

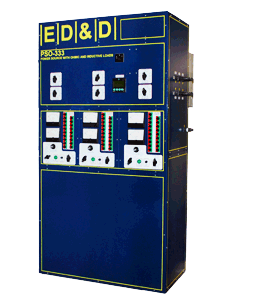

Series PSO Power Supply with Ohmic & Inductive Load

Product Details
  • Power Source Unit
  • Ohmic Load Unit
  • Inductive Load Unit
  • 3 separate units
