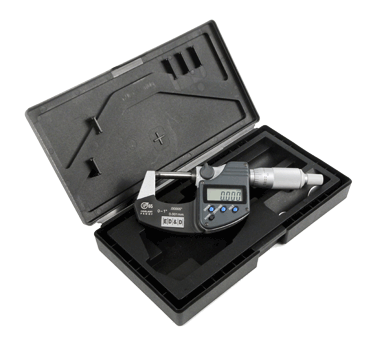

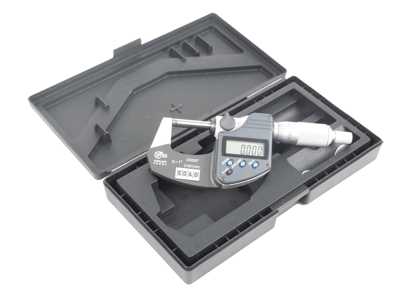

Model DMM-01 Digital Micrometer

Product Details
The new breed of digital electronic micrometers featuring the latest state of the art in micro electronics. Simple to operate. Very accurate. Balanced for convenient single hand operation. Perfect for measuring insulation thickness! Includes hold and floating zero features. Furnished in fitted case. Size/Range is 0-1 in./0-25mm. Resolution is 0.0005 in./0.001m. Accuracy is 0.00005 in./0.001mm.

Meets Requirements for Testing Standard(s) including but not limited to:

IEC 61010
EN 61010
UL 94

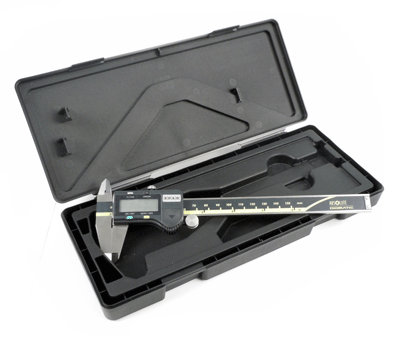

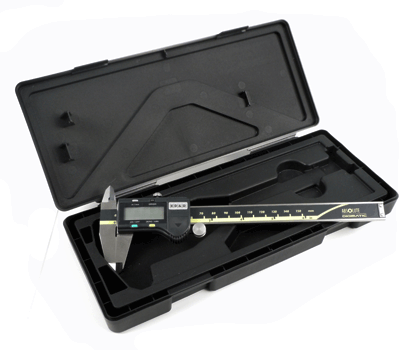

Model DCP-01 Digital Caliper

Product Details
Fast, easy to use, accurate and with exceptional user features. Simply push one button to switch between inches and millimeters. Also has hold and floating zero features. Case provided. Size/Range is 0-6 in./0-150mm. Resolution is 0.005 in./0.01m. Accuracy is 0.001 in./0.03mm.

Model CCK-01 Optical Comparator Kit?

Product Details
Kit contains all four of these valuable time saving tools...

CC-23 Feeler Gauge
OC-20 Optical Comparator
DCP-01 Digital Calipers
DMM-01 Digital Micrometer

Everything you need for creepage and clearance testing!

Meets Requirements for Testing Standard(s) including but not limited to:

IEC 60335
IEC 60950
IEC 61010
UL 60950
CSA 950
EN 60950

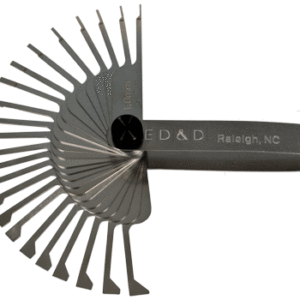

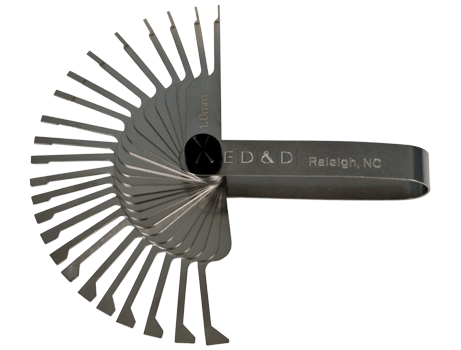

Model CC-23 Feeler Gauge

Product Details
A must have item for measuring creepage and clearance distances throughout your products. Saves an invaluable amount of time measuring electrical spacings. Checks insulation and other spacing in office machines, data-processing and medical equipment, power supplies, transformers, P.C. Boards, etc... These are the only gauges available which are in the "random" dimensions of the international Standards. Dimensions for the 23 individual gauges include (in mm): 1.0, 1.2, 1.4, 1.5, 1.6, 2.0, 2.4, 2.5, 2.8, 3.0, 3.2, 3.3, 3.5, 4.0, 4.5, 5.0, 5.6, 6.0, 6.3, 6.4, 6.5, 7.0 and 8.0. Each of these gauges and the attachments ring are made of resilient hardness stainless steel.

Meets Requirements for Testing Standard(s) including but not limited to:

IEC 60601
IEC 61010
EN 61010

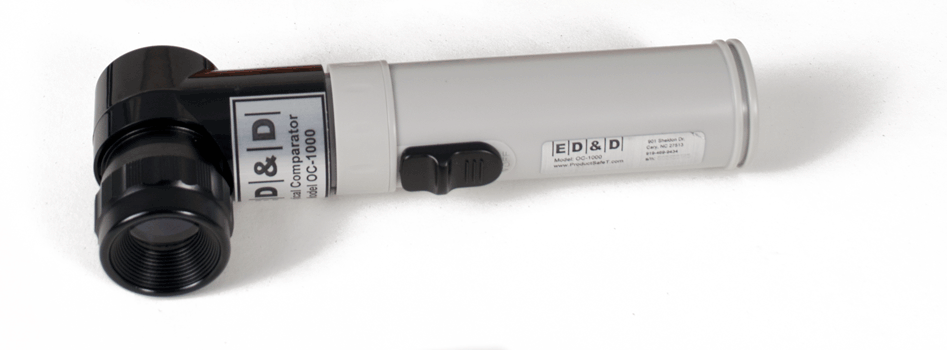

Model OC-1000 Deluxe Optical Comparator Gauge Set™

Product Details
ED&D's 10x Pocket Optical Comparator Set magnifies images which are sharp, undistorted and aberration free. Convenient for checking angles, thread measurements, hole sizes, as well as narrow creepage and clearance distances on circuit boards and within flex circuits. The illuminator attachment assists where additional light is required. The optical comparator, illuminator and the nine reticles are packaged in a durable wooden case. Interchangeable reticles allow measurement of diameters, radius, angles, thickness, etc. Includes 9 reticles, 10X Comparator and illuminator attachment.

Meets Requirements for Testing Standard(s) including but not limited to:

IEC 61010

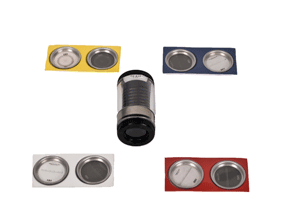

Model OC-20 Optical Comparator

Product Details
The only way to reliably measure narrow creepage distances between traces on printed circuit boards and within flex circuits. Comes with four separate reticles, all the most popular for engineers and technicians: 0.005 in/div, 0.1 mm/div, 1/64 in/div and degrees/div.

Meets Requirements for Testing Standard(s) including but not limited to:

IEC 61010
EN 61010
