Home / Other Safety Products
  • Model H06.10 Surge Tester

    Read more
  • Model STM-200 Scratch Test Machine

    Read more
  • Model SP-01 Scratch Pin Probe

    Read more
  • Model SP-02 Scratch Pin Probe

    Read more
  • Model SET-50 Sharp Edge Tester

    Read more
  • Model TC-3 Sharp Edge Accessory Kit

    Read more
  • Model CSW-01 Calibrated Stop Watch

    Read more
  • Model AM-01 Angle Meter

    Read more
  • Model PRO-360 Digital Protractor

    Read more
  • Model E-T2-70 Inclined Plane Device

    Read more
  • Model BD-50E ED&D Spark Tester

    Read more
  • Model MRL-01 Mandrel

    Read more

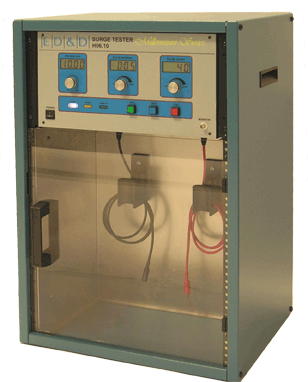

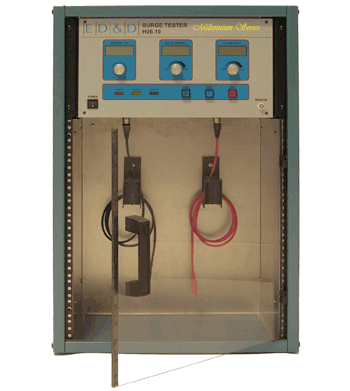

Model H06.10 Surge Tester

Product Details
  • High voltage supply 10 kV DC 1.5 mA
  • Voltage indicating instrument with digital measurement display
  • High voltage capacitor 1 nF
  • Switch S according to Fig. 7a
  • Interval pulser to control switch
  • 2 Sockets in the testing cabinet to connect the specimen
  • BNC terminal connected in series with a voltage divider, to connect an oscilloscope.
According to IEC 60065 / 1998-07 § 10.1 and § 14.1 a Fig. 5a and Fig. 5b, EN 60065 / 1993 § 10.1 and § 14.1a Fig. 7a and Fig. 7b, DIN VDE 0860 / 1989-05 § 10.1, § 14.1a and § 14.2.4.1 Fig. 7a and Fig. 7b
    Meets Requirements for Testing Standard(s) including but not limited to:
  • EN 60065
  • IEC 60065

Model STM-200 Scratch Test Machine

Product Details
This device is used to determine the adherence and the durability of protective coverings on printed circuit boards and of insulating layers on accessible hazardous parts or metal parts. Built in strict accordance with IEC 60065 and IEC 60950.
    Meets Requirements for Testing Standard(s) including but not limited to:
  • IEC 60950
  • EN 60950
  • UL 1450

Model SP-01 Scratch Pin Probe

Product Details
Used to test resistance to abrasion on insulating materials and conformal coatings. Hardened steel pin, the end is a cone having a top angle of 40 degrees, tip is rounded with a radius of 0.25 ± 0.02 mm. Complies with many Standards, including IEC based Standards. Entire scratch test apparatus available. NOTE: Use this scratching pin with the STM-200 Scratch Test Machine for consistent, accurate and precise results.
    Meets Requirements for Testing Standard(s) including but not limited to:
  • IEC 60335
  • IEC 60950
  • EN 60950
  • UL 1450

Model SP-02 Scratch Pin Probe

Product Details
Scratching Pin Probe for IEC 60335-2-24 tests NOTE: Use this scratching pin with the STM-200 Scratch Test Machine for consistent, accurate and precise results.

Model SET-50 Sharp Edge Tester

Product Details
The SET-50 is the industry standard for sharp edge testing. It has been chosen and published by UL as their preferred design! It consists of a clam shell type housing that fits into the palm of a hand and has a shorter arm. Sealed ball bearing have been added to reduce friction, and a new spring was installed to meet the latest UL force requirements. The unit comes in a protective storage box (not shown).
    Meets Requirements for Testing Standard(s) including but not limited to:
  • IEC 60950
  • EN 60950
  • UL 1450

Model TC-3 Sharp Edge Accessory Kit

Product Details

  • 42 "tape caps" for SET-50
  • Tape Caps meet the latest UL, IEC, CE, ASTM, and other standards for tapes

    Meets Requirements for Testing Standard(s) including but not limited to:
  • IEC 60950
  • EN 60950

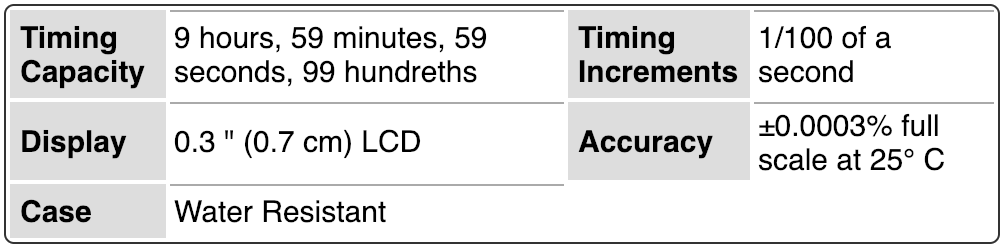

Model CSW-01 Calibrated Stop Watch

Product Details
  • Timing Features:
    1. Single Action
    2. Time in / Time Out
    3. Continuous
  • Audible SPLIT/LAP & START/STOP indicator
    Meets Requirements for Testing Standard(s) including but not limited to:
  • UL 94

Model AM-01 Angle Meter

Product Details
This handy device makes stability tests a snap. It consists of a plastic blue body encasing clear acrylic lens with easy increments 0-90 degrees in four quadrants. Includes strong magnetic base and metric rule one edge and English rule on other. Place on product and then tip product to the desired angle.
    Meets Requirements for Testing Standard(s) including but not limited to:
  • IEC 60335
  • IEC 60950
  • UL 60950
  • EN 60950
  • UL 94

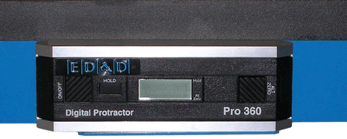

Model PRO-360 Digital Protractor

Product Details
This is our top-of-the-line angle meter, quality is unparalleled. A hold button freezes the reading on the display for hard to see measurements. Zero can be reset to any angle which provides for quick measurement comparisons. This "alternate zero" function also makes it easy to copy any angle setting for things like rafters, handrails, or items that need to be made parallel. The patented, easy, one button calibration resets accuracy to factory specifications with no special tools on any relatively level surface. Many uses including instant, accurate measurement of burn test required angles. It's small, light weight design is perfect for using in tight spaces. The rugged integral aluminum frame assures a product that will provide years of trouble free service. The Pro 360 ships with a 1 year warranty and a 9 volt battery in a hard plastic carrying case. It feels good knowing you have the best, the original Pro 360 Digital Protractor. Don’t accept knockoffs using this same model number - - buy from ED&D!
    Meets Requirements for Testing Standard(s) including but not limited to:
  • UL 94

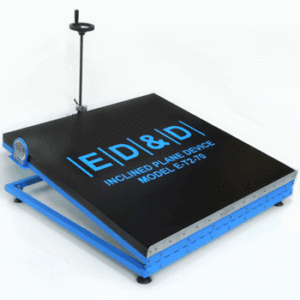

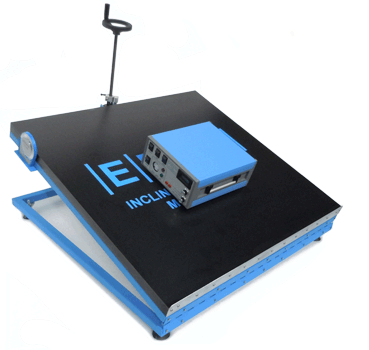

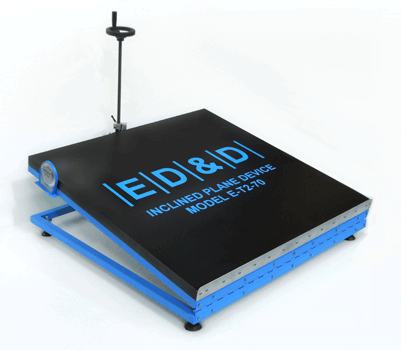

Model E-T2-70 Inclined Plane Device

Product Details
The Inclined Plane Device is used to determine the stability of electric appliances which are used on a table or on the floor. In accordance with IEC 60065, IEC 60335-1, IEC 60601-1 and IEC 60950. Table Area: 1000 mm X 1000 mm
    Meets Requirements for Testing Standard(s) including but not limited to:
  • IEC 60335
  • IEC 60601
  • IEC 61010
  • EN 61010

Model BD-50E ED&D Spark Tester

Product Details
With this product you can check the quality of your weld. This rugged tester is specifically designed for inspecting tank lining and for applications where continuous use is a necessity. The unit's high voltage transformer isolates it from the line power, so it runs cooler.

Model MRL-01 Mandrel

Product Details
The Mandrel is used to test non-separable thin sheet material (Constructional requirements with regard to Protection against Electric Shock) for IEC60950:2005 Annex AA & IEC60065:2005 Clause 8.22.
