Home / Voltage, Current, & Power Management
  • Current Clamps

    Read more
  • Model 2105 Digital Wattmeter

    Read more
  • Model 4176 Programmable Digital Micro-Ohmmete

    Read more
  • Model PFI-MDD Force Gauge Test Stand

    Read more

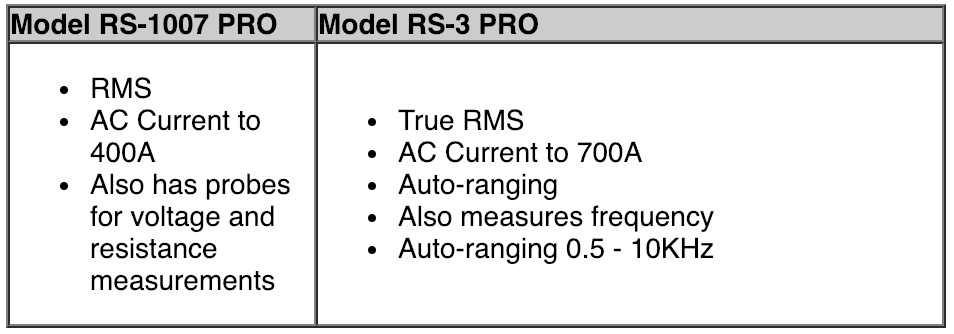

Current Clamps

Product Details
For measuring current, especially higher currents and quicker than series ammeters. These units are considered the finest available. All units are extremely rugged, reliable, and versatile.
    Meets Requirements for Testing Standard(s) including but not limited to:
  • UL E180494

Model 2105 Digital Wattmeter

Product Details
This benchtop single-phase Wide Range Digital Power Analyzer is fully loaded with measurement features you'd expect on instruments costing three times the price. The 2105 boasts twin high resolution 4 1/2 digital displays, DC to 50 kHz frequency response, true power measurement, true RMS voltage and current and built-in peak overload indicators. The 2105 offers 600, 300, 150 and 30 volt ranges and 20, 2 and 200m amp ranges - - making it perfect for all product safety testing applications. The ED&D 2105 power meter is also a great measurement instrument for college and university motor test laboratories.
    Meets Requirements for Testing Standard(s) including but not limited to:
  • IEC 60335
  • IEC 60950
  • CSA 950
  • EN 60950

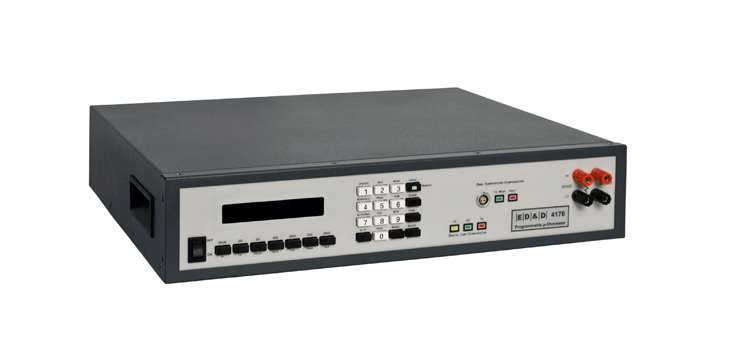

Model 4176 Programmable Digital Micro-Ohmmete

Product Details
The ED&D Model 4176 Programmable μ-Ohmmeter offers super-stable low resistance measurements for hard-to-test items such as transformers, coils, shunts, and even the resistance of wire itself. With a basic accuracy of 0.04%, this model allows measurements from 1μΩ to 30kΩ. The seven ranges can be activated manually or through the Auto-Range feature. For optimal accuracy, connections to the load are made via a four-wire Kelvin binding post terminal that can accept banana plugs, spade lug or wires. The 4176 features an easy to read, intensity adjustable and time variable VFD display. The instrument can be operated remotely through its talk/listen RS-232 port or through the optional USB interface.

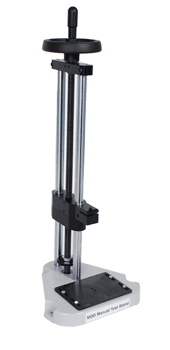

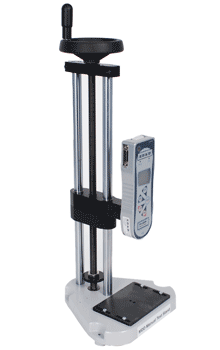

Model PFI-MDD Force Gauge Test Stand

Product Details
  • Robust Construction
  • Easy To Use
  • Lightweight and Portable
  • Ideal for quick one-off checks
  • 1000N Capacity
  • Hand-Wheel Operation
  • Crosshead Travel: 2mm per hand-wheel rotation
  • ED&D Force Gauges have mounting holes for test stand fixing
